Systemic Circulation

Vascular Network

The left ventricle ejects blood into the aorta, which then distributes the blood flow throughout the body using a network of blood vessels. Just beyond the aortic valve in the ascending aorta, there are small openings (left and right coronary ostia) from which arise the left and right coronary arteries that supply blood flow to the heart muscle. Near the top of the aortic arch, there are three major arteries that distribute blood flow to the upper thorax, arms and head. The first is the brachiocephalic artery, which shortly branches into the right subclavian artery (supplies the upper thorax, right arm and head) and right common carotid artery (supplies head). The next branch from the aortic arch is the left common carotid artery, which also supplies the head. The third major artery arising from the aortic arch is the left subclavian artery, which supplies blood flow to the upper thorax, left arm and head. Past the arch, the aorta descends downward (descending aorta) through the thorax (thoracic aorta) where it gives off several small arterial vessels to supply blood flow to the thorax. When the aorta passes through the diaphragm, it continues as the abdominal aorta.  Several major arteries branch from the abdominal aorta, including those that supply blood to the visceral organs (e.g., stomach, intestines, kidneys). In the lower abdomen, the aorta bifurcates into the left and right common iliac arteries, which supply blood to the pelvic region and the legs via additional bifurcations and branches.

As described below, the major distributing arteries that arise from the aorta branch into successively smaller arterial vessels until they become capillaries. These smallest vessels join together to form veins, which then continue to join together with other veins until they enter either the superior or inferior vena cava that bring the blood back into the right atrium of the heart.

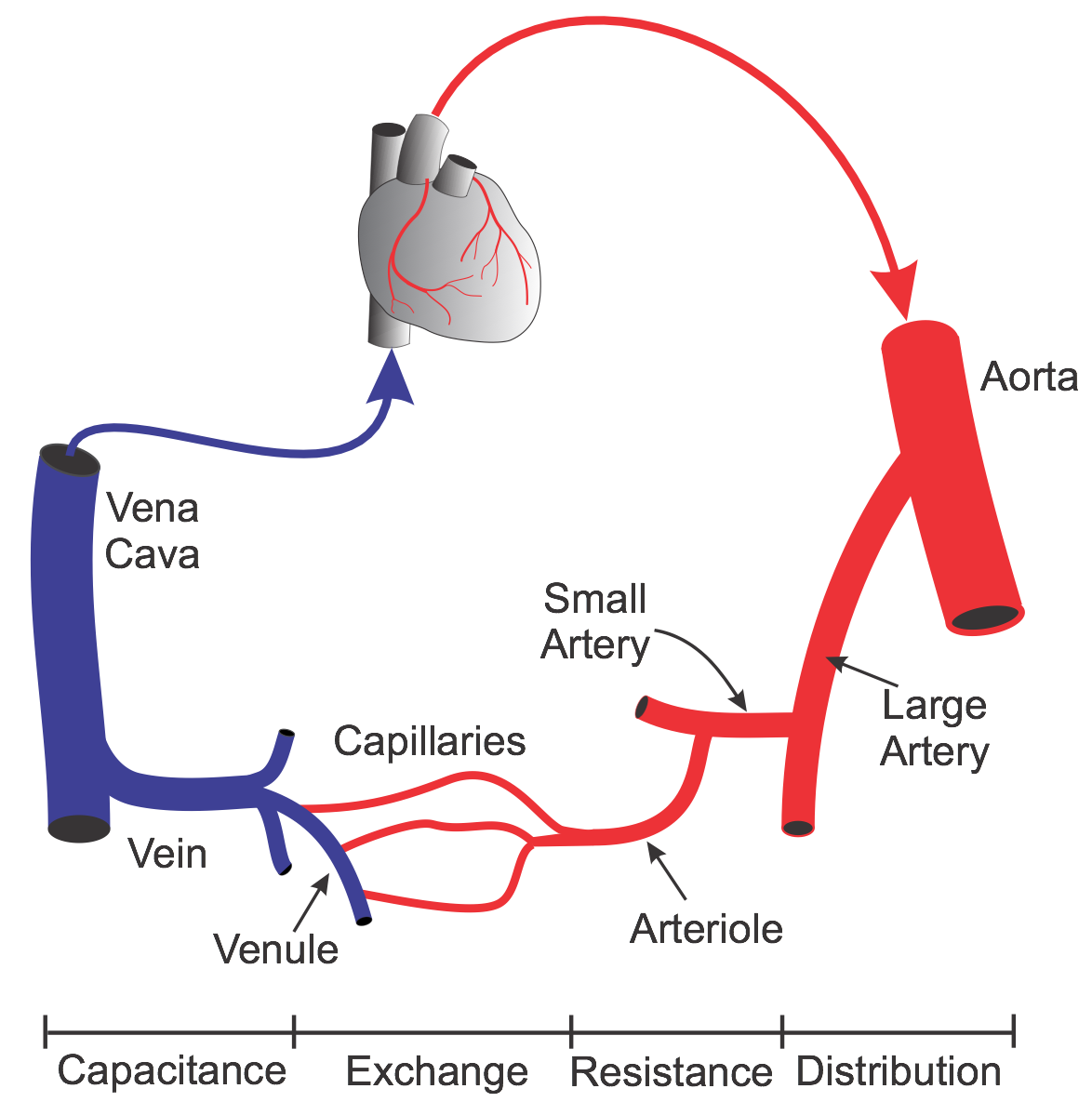

The different vessel types are illustrated in the following figure:

The relative sizes and functions of different blood vessels are summarized in the following table:

types of blood vessels
VESSEL TYPE DIAMETER (mm) FUNCTION
Aorta 25 Pulse dampening and distribution
Large Arteries 1.0 - 4.0 Distribution of arterial blood
Small Arteries 0.2 - 1.0 Distribution and resistance
Arterioles 0.01 - 0.20 Resistance (pressure & flow regulation)
Capillaries 0.006 - 0.010 Exchange
Venules 0.01 - 0.20 Exchange, collection, and capacitance
Veins 0.2 - 5.0 Capacitance function (blood volume)
Vena Cava 35 Collection of venous blood

The aorta, besides being the main vessel to distribute blood to the arterial system, dampens the pulsatile pressure that results from the intermittent outflow from the left ventricle. The actual dampening is a function of the aortic complianceLarge arteries branching off the aorta (e.g., carotid, mesenteric, renal arteries) distribute the blood flow to specific organs. These large arteries, although capable of constricting and dilating, serve virtually no role in the regulation of pressure and blood flow under normal physiological conditions. Once the distributing artery reaches the organ to which it supplies blood, it branches into smaller arteries that distribute blood flow within the organ.  These vessels continue to branch and become arterioles. Together, the small arteries and arterioles represent the primary vessels that are involved in the regulation of arterial blood pressure as well as blood flow within the organ. These vessels are highly innervated by autonomic nerves (particularly sympathetic adrenergic), and respond to changes in nerve activity and circulating hormones by constricting or dilating. Therefore, these vessels are referred to as resistance vessels.  As arterioles become smaller in diameter, they lose their smooth muscle. Vessels that have no smooth muscle, but are composed of endothelial cells and a basement membrane, are termed capillaries, and represent the smallest vessels within the microcirculation. Capillaries are the primary exchange vessels within the body. Across the capillary endothelium, oxygen, carbon dioxide, water, electrolytes, proteins, metabolic substrates and by-products (e.g., glucose, amino acids, lactic acid), and circulating hormones are exchanged between the plasma and the tissue interstitium surrounding the capillary. When capillaries join together, they form postcapillary venules, which also serve as exchange vessels, particularly for large macromolecules as well as fluid.  As postcapillary venules join together and form larger venules, smooth muscle once again appears. These venous vessels, like the resistance vessels, are capable of dilating and constricting, and serve an important function in regulating capillary pressure. Venules form larger veins that serve as the primary capacitance vessels of the body - i.e., the site where most of the blood volume is found and where regional blood volume is regulated. For example, constriction of the veins decreases venous volume and increases venous pressure, which alters cardiac output. The final venous vessels are the inferior and superior vena cava, which carry the blood back to the right atrium of the heart.

Distribution of Pressures and Volumes

blood pressure in different blood vessels

As shown in the figure to the right, the aorta and arteries have the highest pressure. The mean aortic pressure (solid red line) is about 95 mmHg in a normal individual. The mean blood pressure does not fall very much as the blood flows down the aorta and through large distributing arteries. It is not until the small arteries and arterioles that there is a large fall in mean blood pressure. Approximately 50-70% of the pressure drop along the vasculature occurs within the small arteries and arterioles. By the time blood reaches the capillaries the mean pressure may be 25-30 mmHg, depending upon the organ. The pressure falls further as blood travels into the veins and back to the heart. Pressure within the thoracic vena cava near the right atrium is very close to zero, and fluctuates from a few mmHg negative to positive with respiration.

The arterial pulse pressure (shown as the grey band around the mean pressure in the figure) increases as the blood flow travels down the aorta and into distributing arteries. The systolic pressure rises and the diastolic pressure falls, therefore the pulse pressure increases. This occurs because of reflective waves from vessel branching and from decreased arterial compliance (increased vessel stiffness) as the pressure pulse travels from the aorta into distributing arteries. As the blood flows into smaller arteries and arterioles, the pulsatility declines.

Regarding the distribution of blood volume within the circulation, the greatest volume resides in the venous vasculature, where 70-80% of the blood volume is found.  For this reason,  veins are referred to as capacitance vessels.  The relative volume of blood between the arterial and venous sides of the circulation can vary considerably depending upon total blood volume, intravascular pressures, and vascular compliance.

Revised 4/24/2014
